Variables

Variables are named numeric inputs you can reference in component quantity expressions. They let one assembly cover many cases without copying it.

Two kinds

• System variables — a large set pre-seeded for you (e.g. area, coats, block_thickness_mm, bulking_factor, coverage_per_unit, density, depth). Read-only, shared across all companies, often tagged with a trade.
• Custom variables — your company’s own. Create whatever you need.

The Variables tab

Switch to the Variables tab inside Library → Assemblies. The list shows every variable, with filters for All / System / Custom and a “Used in” column that tells you how many assemblies reference each one.

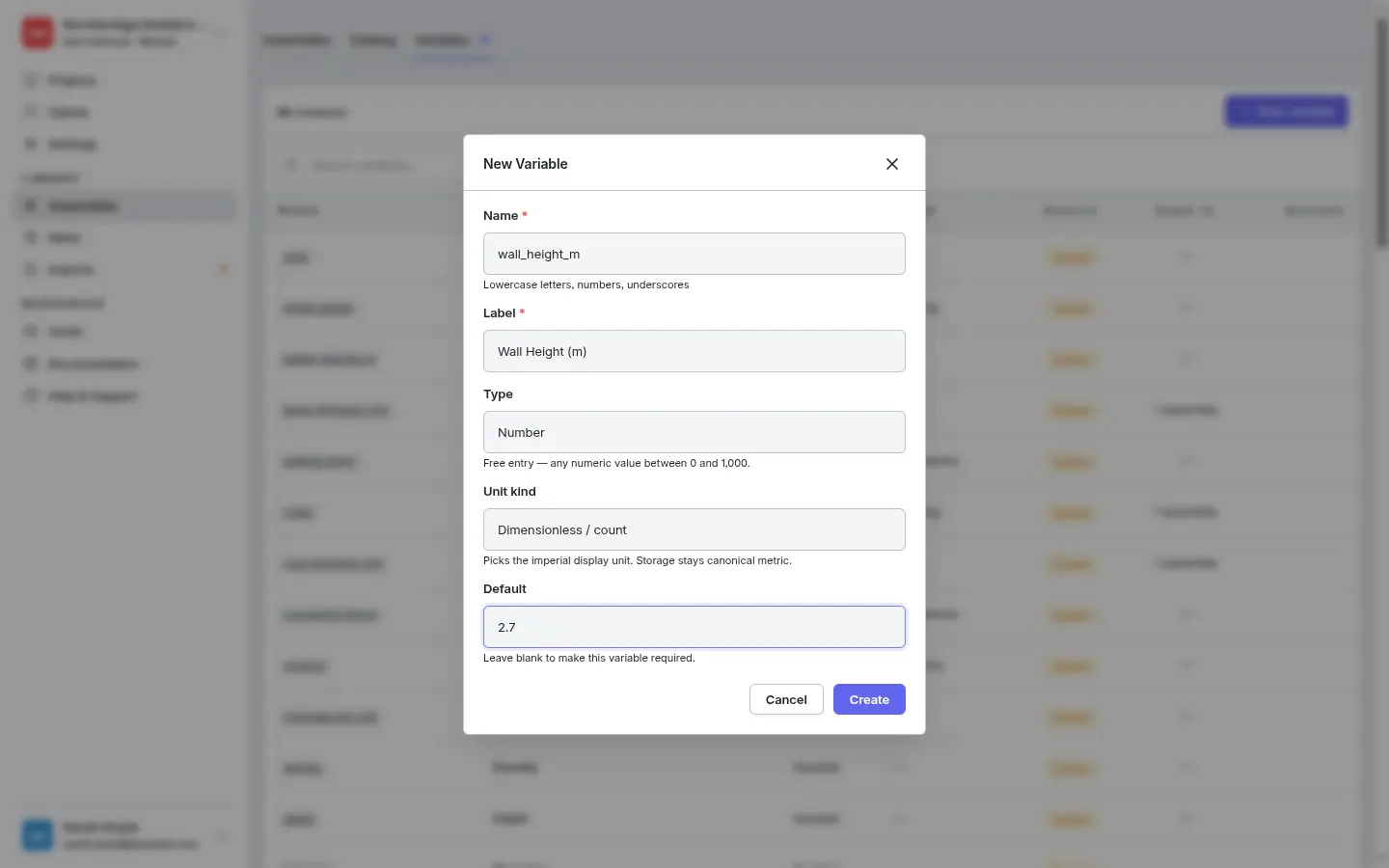

Creating a custom variable

1. Click + New variable.

2. Fill in:

   • Name — lowercase letters, numbers, and underscores only. This is what you’ll type in expressions (e.g. render_thickness_mm).
   • Label — the human-readable name shown when applying the assembly (e.g. “Render Thickness (mm)”).
   • Type — Number. Any numeric value between 0 and 1,000.
   • Unit kind — picks the imperial display unit. Storage stays canonical metric.
   • Default — the pre-filled value at apply-time. Leave blank to make the variable required (the user must enter a value before the assembly will apply).

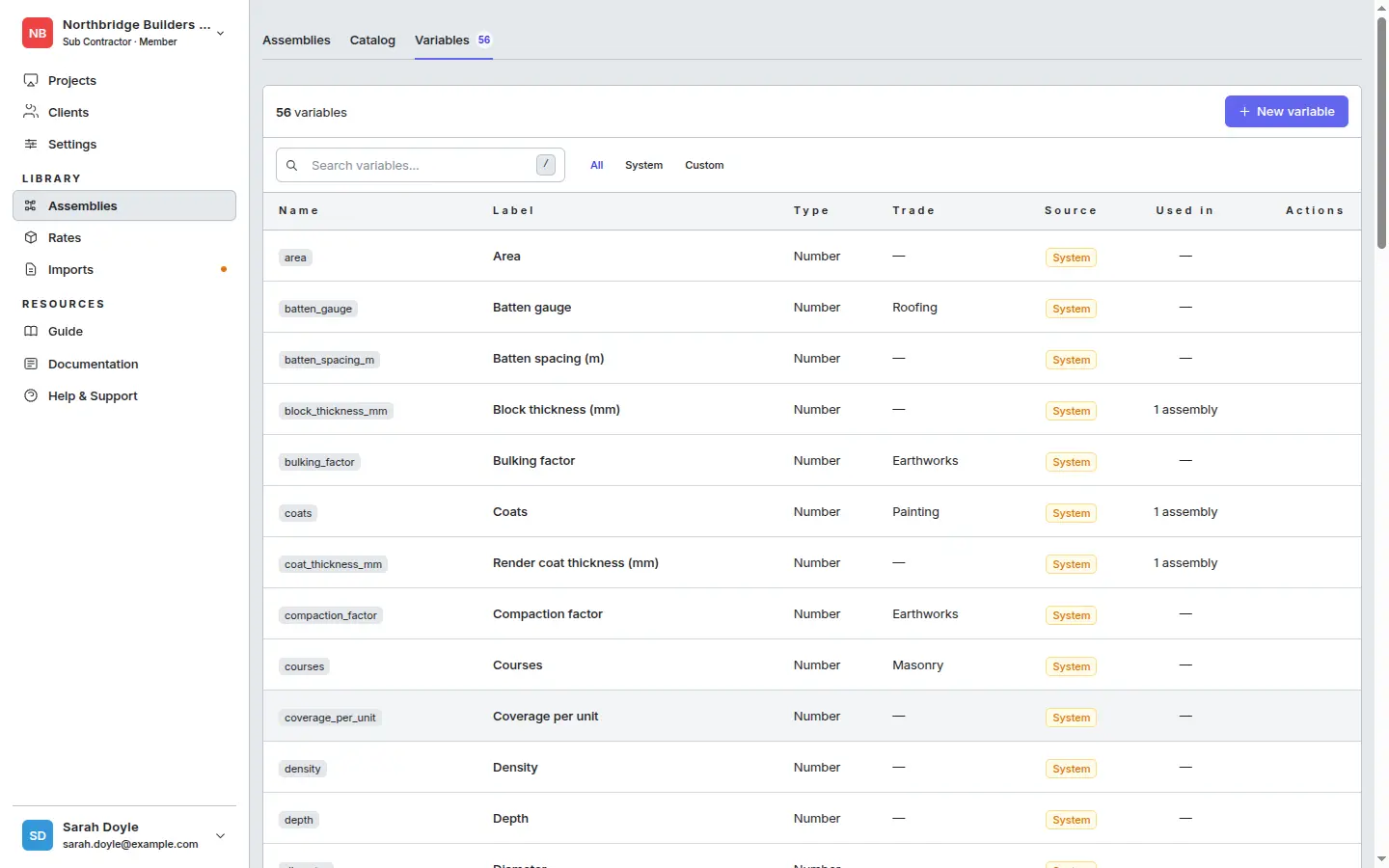

3. Click Create. The variable appears in the list and is immediately usable in any assembly expression.



Using a variable in an assembly

In any component’s quantity expression, type { and pick the variable from the dropdown. When the assembly is applied, the user can override the default for that one application — without changing the assembly itself.

Real example

A “Painted wall” assembly with a {coats} variable (default 2) lets one assembly cover single-coat, two-coat, and three-coat work. The user picking the assembly just changes {coats} to 3 for the heritage job that needs the extra coat.

A “Blockwork wall” assembly with a {block_thickness_mm} variable can produce a 100 mm rate, a 140 mm rate, or a 215 mm rate — same assembly, different number at apply-time.

Why variables beat copies

Without variables, you’d need three blockwork assemblies — one per thickness — and three places to update if your supplier raises prices. With a {block_thickness_mm} variable, you maintain one assembly and pick the thickness when you apply it.

Deletion

Custom variables can only be deleted when their Used in count is zero. If a variable is referenced by any assembly, the delete action is disabled — remove the references first, or leave the variable in place.
